Recorder Part

Signal Processing

AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz

Data Type (Recording)

-WAVE (Sampling Rate: 44.1/48/88.2/96 kHz, Bit Depth: 16/24 bits)
-MP3 (Sampling Rate: 44.1/48 kHz, Bit Rates: 64/96/128/160/192/
224/320 kbps)
-WAVE + MP3 (Sampling Rate: 44.1/48 kHz, Bit Depth: 16 bits,
Bit Rates: 128 kbps)

Data Type (Playback)

-WAVE (Sampling Rate: 32/44.1/48/88.2/96 kHz, Bit Depth:
16/24 bits)
-MP3 (Sampling Rate: 32/44.1/48 kHz, Bit Rates: 32 - 320 kbps
or VBR)

Memory Card

SD Card, SDHC format compatible

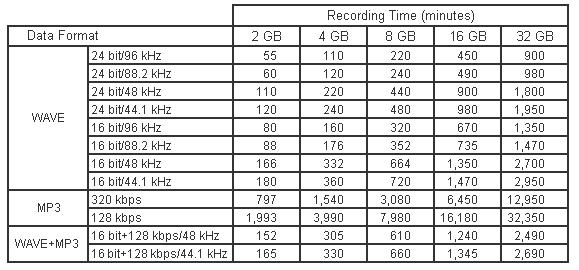

Recording Time

Input/Output

Nominal Input Level (Variable)

Mic input: -33 dBu (MIC GAIN is H, Default input level)
Mic input: -15 dBu (MIC GAIN is L, Default input level)
Line input: -7 dBu (Default input level)
* 0 dBu = 0.775 Vrms

Input Impedance

Mic input (MIC GAIN is H): 7k ohms
Mic input (MIC GAIN is L): 5k ohms
Line input: 8 k ohms

Output Level

20 mW + 20 mW (In case 16 ohms load)

Recommended Load Impedance

16 ohms or greater

Frequency Response

20 Hz to 40 kHz

USB Interface

Mini-B type connector (support USB 2.0/1.1 mass storage device class)

Size and Weight

Width

Height

Weight
