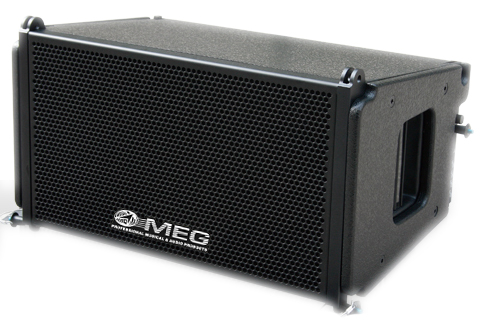

Frequency Response 62Hz-20KHz
Directivity Angle H90°×V40°
Impedance 8 ohms
Power(RMS) 300W
Power Peak Handling 600W/5Min
Sensitivity 103dB(2.83V/m)
Maximum SPL 130dB
Connection 2×NL 4 speakon
Enclosure Construction 15-Birch Plywood
DimensionsH×W×D 300×565×370mm
Low 10 IN×1（260mm）
High 2IN×1（44mm)
N.W. 19.6Kg

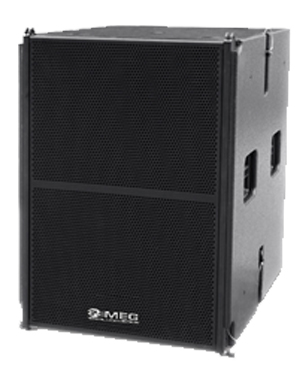

Frequency Response 40Hz-250Hz
Directivity Angle -------------------
Impedance 8 ohms
Power(RMS) 600W
Power Peak Handling 1200/5min
Sensitivity 99dB(2.83V/m)
Maximum SPL 126dB
Connection 2×NL 4 speakon
Enclosure Construction 15-Birch Plywood
DimensionsH×W×D 740×565×705mm
Low 18IN×1(460mm)
High --------------------------
N.W. 54kg
Powe AC220V 50Hz-60Hz
