MODEL

DEM800D

DEM1200D

8Ω stereo power

2×350W

2×600W

4Ω stereo power

2×750W

2×1200W

2Ω stereo power

2×1000W

2×2000W

8 BTL

1560W

2300W

Frequency Response

20-20000Hz(±0.3dB)

THD+N

>0.08% 1KHz

S/N Ratio

>95dB

>93dB

Slew Ratio

30V/µS

44V/µS

Damping Factor

>400

>300

Crosstalk

>90dB@ 1KHz

Input Impedance

30KΩ(Balance)/15KΩ(Unbalance)

Input Sensitivity

0.775V/1.0V/1.4V

Protect

Overheat short circuit,DC,limit and---softstart,output relay-zero current switch,intellctual clip limiter

Feature

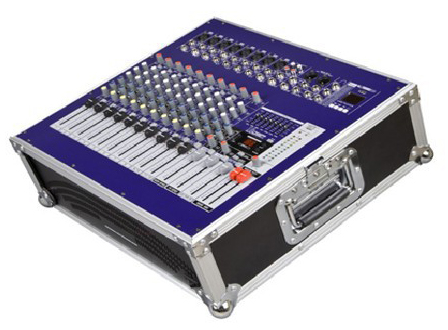

•  8 channels and 12 channels audio mixer,and it has one band stereo input.
• Analog Mixer,inner circut design for high quality super-low noise,big dynamic space.
• Mono output and main output are equipped with signal insert point,which is easy for connecting signal processor.
• Each channel has three band independent EQ,warm timbre,powerful music sound.
• Each mono is equipped with low-cut function.
• 16DSP effect.
• Designed with USB and LCD display.
• 48V phantom power supporting to use the condenser.
• Main output with 7 bands stereo eqyalizer.
• Function of Karaoke monitor/recording output.
• 60mm High degree analysis fader.
• High quality components and super stable structure.
