JS-1125

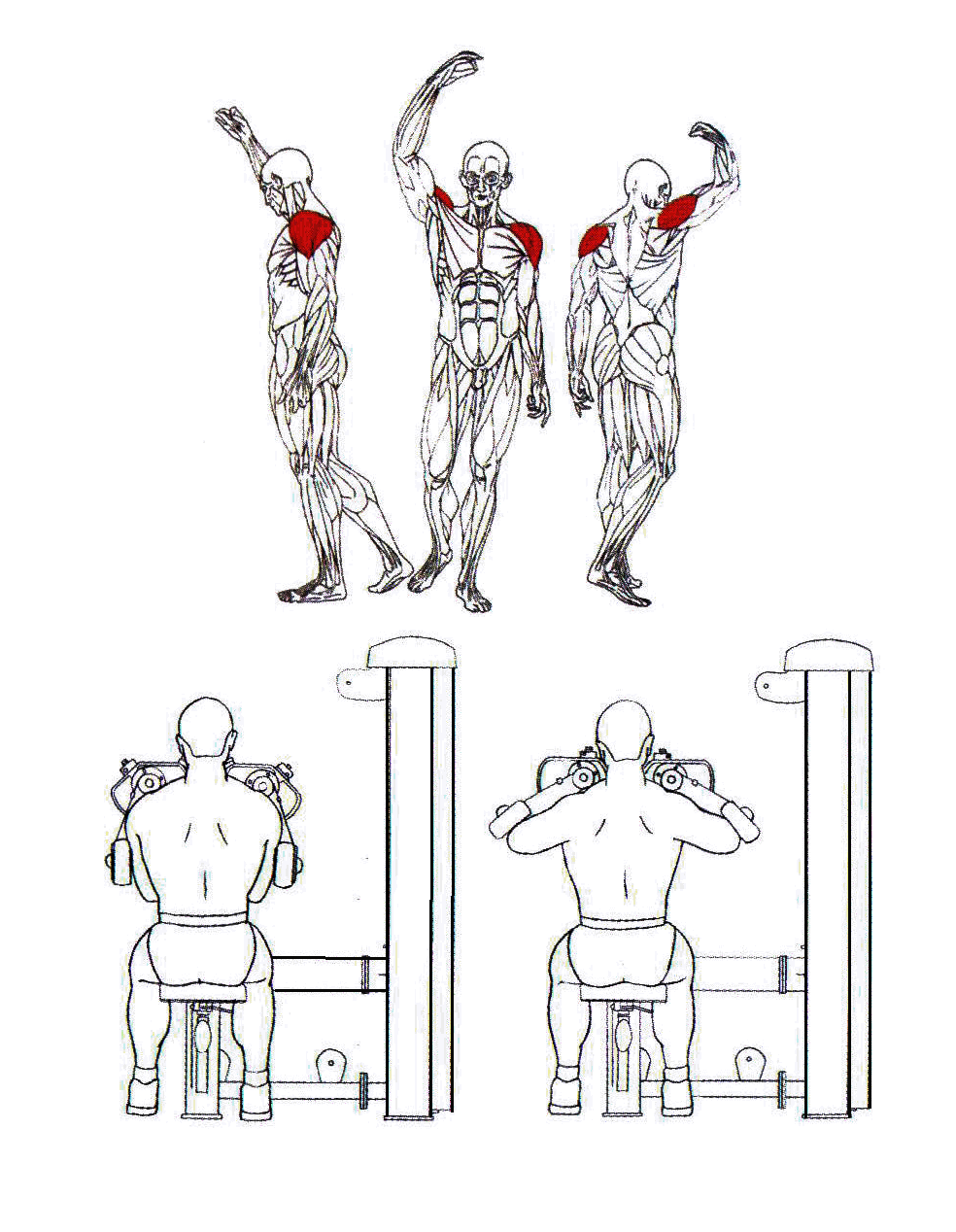

LATERAL RAISE
Weight stack : 19 x 2.5kg+5kg+ 1.25kg (the fine weight stack )= 53.75kg
Assembly size: 1230 x 980 x 1685 (mm)
G.W.:300kg
N.W.:260kg
The main frame is made of high strength big section ellipse steel tube, thickness: 3 mm
Resistance transferring system adopth constant-force cam & high intensity belt & oriented wheel to avoid off-center
Soft mat design accords with kinesics
With the fine-adjusting mechanism ,alternation can be 1.25KG
The height of seat is stepless-adjustable by damp cylinder
